This article is the third installment in a series of tutorials:

  • Custom Vision Application – Create a Custom Vision project that classifies images and allows you to upload images to be classified.
  • Angular 4 Application (Part One) – Creating an application that allows you to upload an image and have it classified.
  • (this article) Angular 4 Application (Part Two) – Upload new training images, tag them, and re-train the model.

Set-up The Application


To run the sample code (available on the Downloads page of this site), we first need to obtain the Prediction URL and keys for the application (created in the first tutorial of the series: Microsoft Cognitive Custom Vision Service (Tutorial Series)).


Next, we open the .Net Core Angular 4 application (available on the Downloads page of this site), in Visual Studio 2017 (or higher), and update and save the values in the appsettings.json file.

Run The Application

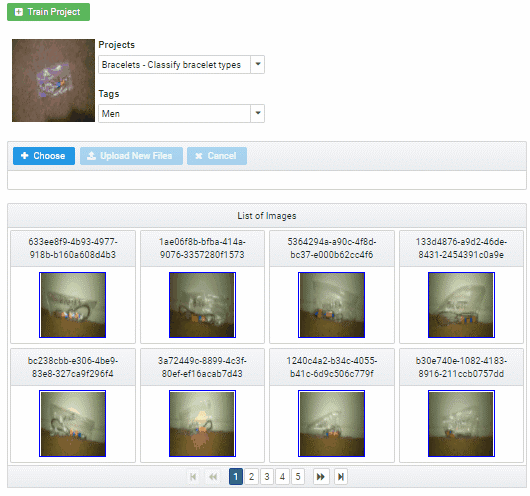

We run the application.


Click the Training tab.


Select one of your Projects from the Projects dropdown, then one of the Tags for the Project in the Tags dropdown.

Any images uploaded and associated with that Tag will display in the pageable list.

(Note: You create Projects and Tags for those Projects in the Custom Vision Portal )

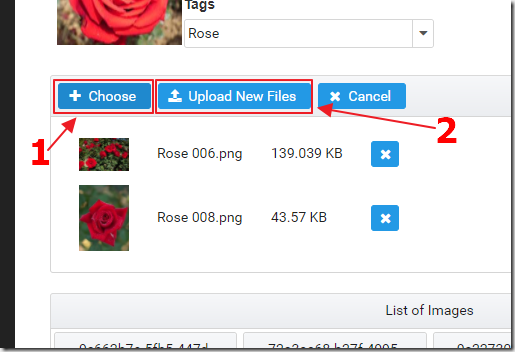

To add new images to be associated with the selected Tag, click the Choose button, select the files to upload, then click the Upload New Files button.

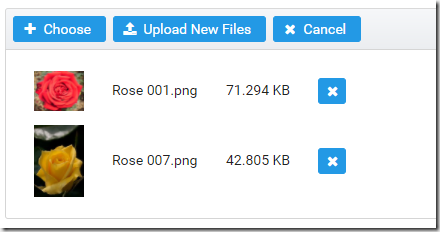

The files will be added to the list of images.


If you log into the Custom Vision Portal and select the Project, the Training Images tab, then the Tag, you will see the images.


Returning to the Angular project, we can now click the Train Project button to create the predictive model.


We can now log into the Custom Vision Portal and select the Project, and the Performance tab, to see the Iteration that is created and the performance.

We can follow the directions in the article Angular 4 Application (Part One) to update the PredictionKey and PredictionURL in the Angular application to point to this project and allow us to upload images and make predictions (on the Home tab of the Angular application).

The API


The REST based API called by the Angular application is documented at the following link: Custom Vision Service API Reference.

Get Projects


The first code to run is the code to determine what projects you have and to populate the dropdown.

The following code is used for the markup for the dropdown:


									<
									label
									for="Projects"
									>Projects</
									label
									>

									<
									br
									/>

									<
									p-dropdown
									id="Projects"

									appendTo="body"

									[options]="projectsDropdown"

									[(ngModel)]="selectedProject"

									[style]="{'width':'250px'}"

									(onChange)="onProjectChange()">
									</
									p-dropdown>


This dropdown is filled by the following code in the associated code file:


									public
									getProjects() {

									this.errorMessage = "";



									// Clear Projects Dropdown

									this.projectsDropdown = [];



									// Call the service -- to get Projects

									this._CustomVisionTrainingService.getProjects()

									.subscribe((projects) => {



									// Temp value to hold Projects because they cannot be


									// assigned to the public property so deep inside the


									// nested iteration

									var tempProjectsDropdown: SelectItem[] = [];



									// Loop through the returned Projects

									for
									(let project of projects) {



									// Create a new SelectedItem

									let newSelectedItem: SelectItem = {

									label: project.name + ' - ' + project.description,

									value: project

									}



									// Add Selected Item to the DropDown

									tempProjectsDropdown.push(newSelectedItem);

									}



									// Add items to the DropDown

									this.projectsDropdown = tempProjectsDropdown;



									if
									(this.projectsDropdown[0].value
									!== 'undefined') {



									// Set the selected option to the first option

									this.selectedProject =
									this.projectsDropdown[0].value;



									// Get the Tags for the Project

									this.getTags();

									}

									},

									error =>
									this.errorMessage = <any>error);

									}

(note: this method then calls the getTags method, to fill the Tags dropdown. This will be covered in the next section)

The getProjects method calls the following getProjects service method:


									// ** Get Projects **

									getProjects(): Observable<ICustomVisionProjectResponse[]> {

									var _Url = 'api/training/GetProjects';



									// Call the client side code

									return
									this._http.get(_Url)

									.map((response: Response) =>

									<ICustomVisionProjectResponse[]>response.json())

									.catch(this.handleError);

									}

This calls the following server side .Net Core method that calls the Microsoft Custom Vision Service API:


									// api/training/GetProjects

									[HttpGet("[action]")]

									#region
									public
									IActionResult GetProjects()

									public
									IActionResult GetProjects()

									{

									List<CustomVisionProjectResponse> colCustomVisionTrainingResponse =

									new
									List<CustomVisionProjectResponse>();



									// Create a HttpClient to make the request

									using
									(HttpClient client =
									new
									HttpClient())

									{

									// Set Training Key in the request headers


									client.DefaultRequestHeaders.Add("Training-key", _TrainingKey);



									// Build the request to the Custom Vision API

									StringBuilder uri =
									new
									StringBuilder();

									uri.Append("https://southcentralus.api.cognitive.microsoft.com");

									uri.Append("/customvision/v2.0/Training");

									uri.Append("/projects?");



									// Make the request to the Custom Vision API

									HttpResponseMessage response = client.GetAsync(uri.ToString()).Result;



									// Get the response

									string
									ResponseContent = response.Content.ReadAsStringAsync().Result;



									// Convert the response to the CustomVisionTrainingResponse object

									colCustomVisionTrainingResponse =

									JsonConvert.DeserializeObject<List<CustomVisionProjectResponse>>(ResponseContent);

									}



									// Return the Response to the Angular application

									return
									Ok(colCustomVisionTrainingResponse);

									}

									#endregion

Get Tags

The code that gets the Tags is similar to the code that gets the Projects. The difference is that the currently selected Project is used as a parameter because a set of Tags is always associated with a specific Project.

Markup:


									<
									label
									for="Tags"
									>Tags</
									label
									>

									<
									br
									/>

									<
									p-dropdown
									id="Tags"

									appendTo="body"

									[options]="tagsDropdown"

									[(ngModel)]="selectedTag"

									[style]="{'width':'250px'}"

									(onChange)="onTagChange()">
									</
									p-dropdown>


Code file:


									public
									getTags() {

									this.errorMessage = "";



									// Clear TotalRecords

									this.totalRecords = 0;



									// Clear Tags Dropdown

									this.tagsDropdown = [];



									// Call the service -- to get Tags

									this._CustomVisionTrainingService.getTags(this.selectedProject)

									.subscribe((tags) => {



									// Temp value to hold Tags because they cannot be


									// assigned to the public property so deep inside the


									// nested iteration

									var tempTagsDropdown: SelectItem[] = [];



									// Loop through the returned Tags

									for
									(let tag of tags.tags) {



									// Create a new SelectedItem

									let newSelectedItem: SelectItem = {

									label: tag.name,

									value: tag

									}



									// Add Selected Item to the DropDown

									tempTagsDropdown.push(newSelectedItem);

									}



									// Add items to the DropDown

									this.tagsDropdown = tempTagsDropdown;



									if
									(this.tagsDropdown[0].value
									!== 'undefined') {



									// Set the selected option to the first option

									this.selectedTag =
									this.tagsDropdown[0].value;



									// Set defaults

									this.currentPage = 1;


									// Get the Images for the Tag

									this.getImages();

									}

									},

									error =>
									this.errorMessage = <any>error);

									}

Service:


									// ** Get Tags **

									getTags(paramProject: ICustomVisionProjectResponse):

									Observable<ICustomVisionTagResponse> {

									var _Url = 'api/training/GetTags?projectId=' + paramProject.id;



									// Call the client side code

									return
									this._http.get(_Url)

									.map((response: Response) =>

									<ICustomVisionTagResponse>response.json())

									.catch(this.handleError);

									}

Server side code:


									// api/training/GetTags

									[HttpGet("[action]")]

									#region
									public
									IActionResult GetTags(string
									projectId)

									public
									IActionResult GetTags(string
									projectId)

									{

									List<CustomVisionTagResponse> objCustomVisionTagResponse =

									new
									List<CustomVisionTagResponse>();



									// Create a HttpClient to make the request

									using
									(HttpClient client =
									new
									HttpClient())

									{

									// Set Training Key in the request headers


									client.DefaultRequestHeaders.Add("Training-key", _TrainingKey);



									// Build the request to the Custom Vision API

									StringBuilder uri =
									new
									StringBuilder();

									uri.Append("https://southcentralus.api.cognitive.microsoft.com");

									uri.Append("/customvision/v2.0/Training");

									uri.Append("/projects/" + projectId);

									uri.Append("/tags?");



									// Make the request to the Custom Vision API

									HttpResponseMessage response = client.GetAsync(uri.ToString()).Result;



									// Get the response

									string
									ResponseContent = response.Content.ReadAsStringAsync().Result;



									// Convert the response to the CustomVisionTagResponse object

									objCustomVisionTagResponse =

									JsonConvert.DeserializeObject<List<CustomVisionTagResponse>>(ResponseContent);

									}



									// Return the Response to the Angular application

									return
									Ok(objCustomVisionTagResponse);

									}

									#endregion

Images


When a Project and a Tag are selected, the code to display the images associated with the selected Tag runs.

The following is the markup:


									<
									p-dataGrid
									[value]="images"

									[paginator]="true"

									[rows]="8"

									[lazy]="true"

									[totalRecords]="totalRecords"

									(onLazyLoad)="loadData($event)">

									<
									p-header
									>

									List of Images

									</
									p-header>

									<
									ng-template
									let-image
									pTemplate="item"
									>

									<
									div
									style="padding:3px"
									class="ui-g-12 ui-md-3"
									>

									<
									p-panel
									[header]="image.id" [style]="{'text-align':'center'}">

									<
									a
									href="{{image.imageUri}}"

									target="_blank"
									>

									<
									src="{{image.thumbnailUri}}"

									width="100"
									height="100"

									style="border:2px solid blue"
									>
									</
									a
									>

									</
									p-panel>

									</
									div
									>

									</
									ng-template>

									</
									p-dataGrid>


Note, that the PrimeNG dataGrid control uses Lazy Loading , meaning data is requested one page at a time.

The following shows the method, in the associated code file, that is called when the user requests each page of data:


									loadData(event) {

									// Set Current Page

									this.currentPage = ((event.first + 8) / 8);



									// Get the Images for the Tag

									this.getImages();

									}

The code above calls the getImages method, that gets the image data:


									getImages() {

									this.errorMessage = "";



									// Clear Images

									this.images = [];



									// Call the service -- to get Images

									this._CustomVisionTrainingService.getImages(

									this.selectedProject,

									this.selectedTag.id,

									this.currentPage.toString()).subscribe((images) => {



									// Temp value to hold Images because they cannot be


									// assigned to the public property so deep inside the


									// nested iteration

									var tempImags: ICustomVisionImageResponse[] = [];



									// Loop through the returned Images

									for
									(let image of images) {



									// Add Selected Item to the list of images

									tempImags.push(image);

									}



									// Add items to the Image list

									this.images = tempImags;



									// Set total records

									this.totalRecords =
									this.selectedTag.imageCount;

									},

									error =>
									this.errorMessage = <any>error);

									}

This calls the following service method:


									// ** Get Images **

									getImages(

									paramProject: ICustomVisionProjectResponse,

									paramTag:
									string,

									paramPageNumber:
									string): Observable<ICustomVisionImageResponse[]> {

									var _Url = 'api/training/GetImages?'

									+ 'projectId=' + paramProject.id

									+ '&tagId=' + paramTag

									+ '&pageNumber=' + paramPageNumber;



									// Call the client side code

									return
									this._http.get(_Url)

									.map((response: Response) =>

									<ICustomVisionImageResponse[]>response.json())

									.catch(this.handleError);

									}

This calls the following server side method:



										// api/training/GetImages

									[HttpGet("[action]")]

									#region
									public
									IActionResult GetImages(string
									projectId,
									string
									tagId,
									string
									pageNumber)

									public
									IActionResult GetImages(string
									projectId,
									string
									tagId,
									string
									pageNumber)

									{

									List<CustomVisionImageResponse> colCustomVisionImageResponse =

									new
									List<CustomVisionImageResponse>();



									if
									((tagId !=
									null) && (projectId !=
									null))

									{

									// Create a HttpClient to make the request

									using
									(HttpClient client =
									new
									HttpClient())

									{

									// Set Training Key in the request headers


									client.DefaultRequestHeaders.Add("Training-key", _TrainingKey);



									// Build the request

									string
									SkipNumber = ((Convert.ToInt32(pageNumber) - 1) * 8).ToString();



									StringBuilder uri =
									new
									StringBuilder();

									uri.Append("https://southcentralus.api.cognitive.microsoft.com");

									uri.Append("/customvision/v2.0/Training");

									uri.Append("/projects/" + projectId);

									uri.Append("/images/tagged?");

									uri.Append("tagIds=" + tagId);

									uri.Append("&take=" + "8");

									uri.Append("&skip=" + SkipNumber);



									// Make the request to the Custom Vision API

									HttpResponseMessage response = client.GetAsync(uri.ToString()).Result;



									// Get the response

									string
									ResponseContent = response.Content.ReadAsStringAsync().Result;



									// Convert the response to the CustomVisionImageResponse object

									colCustomVisionImageResponse =

									JsonConvert.DeserializeObject<List<CustomVisionImageResponse>>(ResponseContent);

									}

									}



									// Return the Response to the Angular application

									return
									Ok(colCustomVisionImageResponse);

									}

									#endregion

Uploading


When a Project and a Tag are selected, you can upload images that will then be associated with the Tag.

The following is the markup for the PrimeNG upload control:


									<
									p-fileUpload
									name="myfile[]"

									url="api/training"

									multiple="true"

									accept="image/*"

									maxFileSize="10000000"

									uploadLabel="Upload New Files"

									(onBeforeUpload)="onBeforeUploadHandler($event)"

									(onUpload)="onUpload($event)">

									</
									p-fileUpload>


This has two associated methods in the code file, onBeforeUploadHandler to pass the selected Project and Tag to the server side code, and onUpload, that is called after the upload, to refresh the images in the dataGrid:


									// Upload



									public
									onBeforeUploadHandler(event) {

									// called before the file(s) are uploaded

									// Send the currently selected Project and Tag in the Header

									event.formData.append("selectedProject",
									this.selectedProject.id);

									event.formData.append("selectedTag",
									this.selectedTag.id);

									}



									public
									onUpload(event) {

									// This is called after the upload

									this.getImages();

									}

The following server side method handles the upload:


									// api/training

									[HttpPost]

									#region
									public
									IActionResult Index()

									public
									IActionResult Index()

									{

									if
									(!Request.HasFormContentType)

									{

									return
									BadRequest();

									}



									// Retrieve data from Form

									var form = Request.Form;



									// Retrieve Project and Tag

									string
									selectedProject = form["selectedProject"].First();

									string
									selectedTag = form["selectedTag"].First();



									if
									((selectedProject !=
									null) && (selectedTag !=
									null))

									{

									// Process all Files

									foreach
									(var file
									in
									form.Files)

									{

									// Process file

									using
									(var readStream = file.OpenReadStream())

									{

									// Create a HttpClient to make the request

									using
									(HttpClient client =
									new
									HttpClient())

									{

									// Set Training Key in the request headers


									client.DefaultRequestHeaders.Add("Training-key", _TrainingKey);



									// Serialize Request

									MultipartFormDataContent _multiPartContent =

									new
									MultipartFormDataContent();



									StreamContent _imageData =

									new
									StreamContent(readStream);



									_imageData.Headers.ContentType =

									new
									MediaTypeHeaderValue("application/octet-stream");



									ContentDispositionHeaderValue _contentDispositionHeaderValue =

									new
									ContentDispositionHeaderValue("form-data");



									_contentDispositionHeaderValue.Name = "imageData";

									_contentDispositionHeaderValue.FileName = file.Name;

									_imageData.Headers.ContentDisposition = _contentDispositionHeaderValue;



									_multiPartContent.Add(_imageData, "imageData");



									// Build the request to the Custom Vision API

									StringBuilder uri =
									new
									StringBuilder();

									uri.Append("https://southcentralus.api.cognitive.microsoft.com");

									uri.Append("/customvision/v2.0/Training");

									uri.Append("/projects/" + selectedProject);

									uri.Append("/images?");

									uri.Append("tagIds=" + selectedTag);



									// Make the request to the Custom Vision Service API

									HttpResponseMessage response =

									client.PostAsync(uri.ToString(), _multiPartContent).Result;



									// Get the response -- (Do nothing with it for now)

									string
									ResponseContent = response.Content.ReadAsStringAsync().Result;

									}

									}

									}

									}



									return
									Ok();

									}

									#endregion

Train Project


After uploading new images, you need to Train the project to create a new predictive model.

The following is the markup for the button:


									<
									button
									pButton
									type="button"

									(click)="TrainProject()"

									label="Train Project"

									icon="fa-plus-square"

									class="ui-button-success"
									>
									</
									button
									>


This calls the following method:


									TrainProject() {

									// Call the service -- to train the project

									this._CustomVisionTrainingService.trainProject(this.selectedProject)

									.subscribe((response: ICustomVisionTrainResponse) => {

									alert(response.status);

									});

									}

This calls the following service method:


									// ** Train Project **

									trainProject(paramProject: ICustomVisionProjectResponse):

									Observable<ICustomVisionTrainResponse> {

									var _Url = 'api/training/TrainProject?projectId=' + paramProject.id;



									// Call the client side code

									return
									this._http.get(_Url)

									.map((response: Response) =>

									<ICustomVisionTrainResponse>response.json())

									.catch(this.handleError);

									}

This calls the following server side code:


									// api/training/TrainProject

									[HttpGet("[action]")]

									#region
									public
									IActionResult TrainProject(string
									projectId)

									public
									IActionResult TrainProject(string
									projectId)

									{

									CustomVisionTrainResponse objCustomVisionTrainResponse =
									new
									CustomVisionTrainResponse();



									// Create a HttpClient to make the request

									using
									(HttpClient client =
									new
									HttpClient())

									{

									HttpResponseMessage response;



									// Set Training Key in the request headers


									client.DefaultRequestHeaders.Add("Training-key", _TrainingKey);



									// Build the request to the Custom Vision API

									StringBuilder uri =
									new
									StringBuilder();

									uri.Append("https://southcentralus.api.cognitive.microsoft.com");

									uri.Append("/customvision/v2.0/Training");

									uri.Append("/projects/" + projectId);

									uri.Append("/train?");



									// Request body

									byte[] byteData = Encoding.UTF8.GetBytes("{body}");



									// Make the request to the Custom Vision Service API

									using
									(var content =
									new
									ByteArrayContent(byteData))

									{

									content.Headers.ContentType =
									new
									MediaTypeHeaderValue("application/json");

									response = client.PostAsync(uri.ToString(), content).Result;

									}



									if
									(response.StatusCode == System.Net.HttpStatusCode.BadRequest)

									{

									objCustomVisionTrainResponse.Status = "No Training needed";

									}

									else

									{

									// Get the response

									string
									ResponseContent = response.Content.ReadAsStringAsync().Result;



									// Convert the response to the CustomVisionTrainResponse object

									objCustomVisionTrainResponse =

									JsonConvert.DeserializeObject<CustomVisionTrainResponse>(ResponseContent);

									}

									}



									// Return a Response to the Angular application

									return
									Ok(objCustomVisionTrainResponse);

									}

									#endregion

Links

https://www.customvision.ai/

Custom Vision Documentation

Custom Vision Service API Reference

PrimeNG dataGrid

PrimeNG upload

Download

You can download the code from the Download page

An error has occurred. This application may no longer respond until reloaded. Reload 🗙
